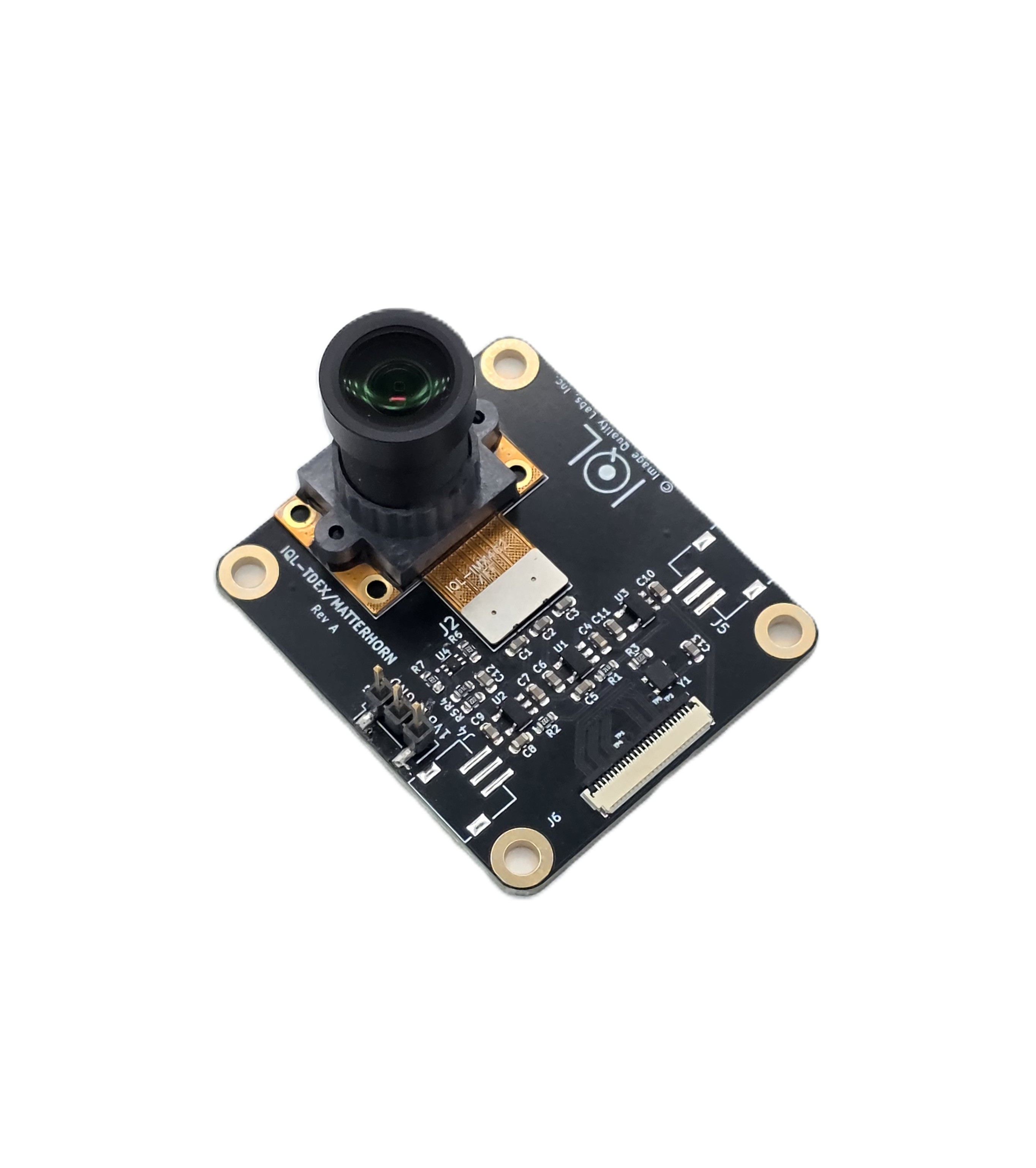

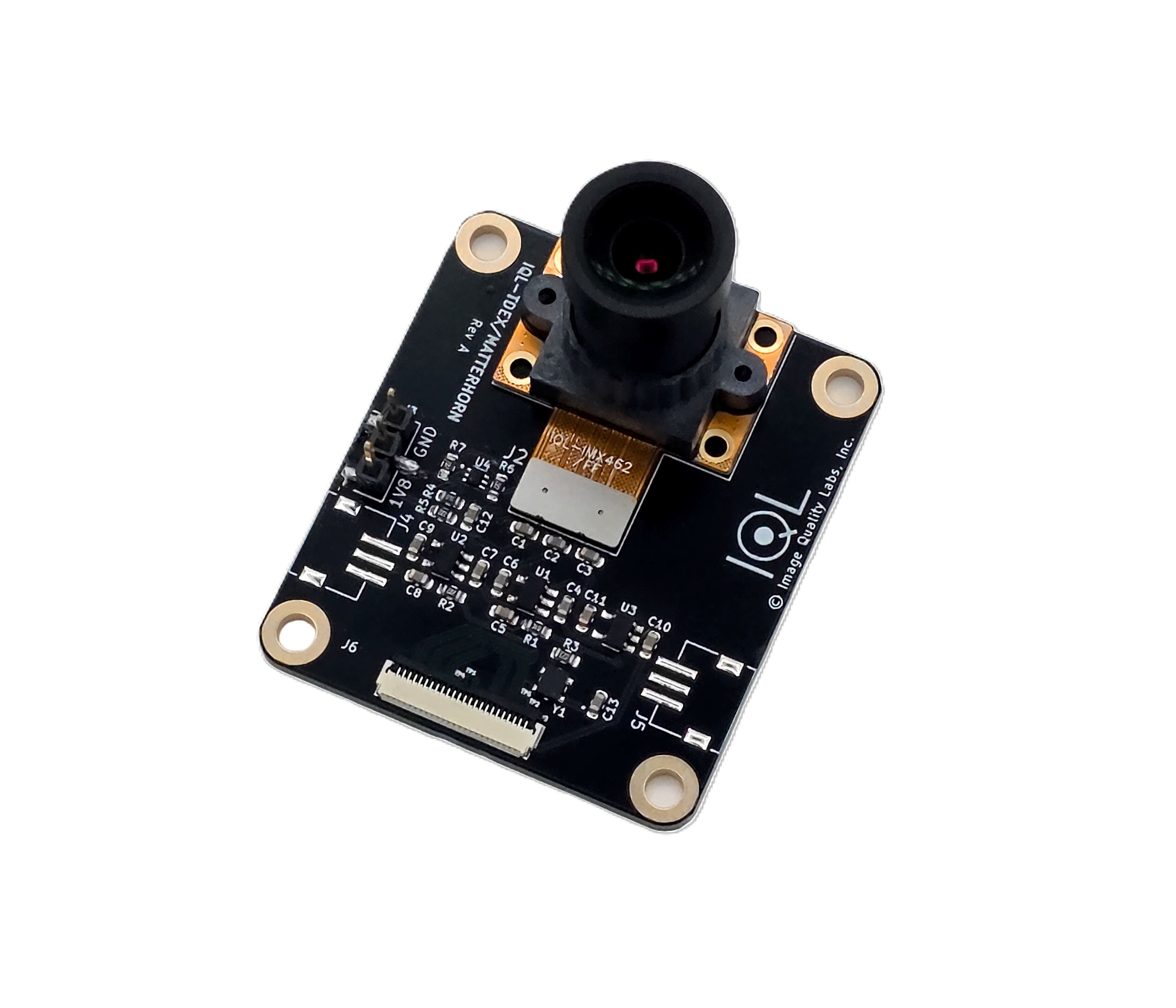

Toradex IMX462 Adapter Board

Key Features

• Sony STARVIS IMX462 2MP camera module
• Fixed focus lens with 101° diagonal field of view
• MIPI interface
• IQL adapter board for the listed Toradex Verdin platforms
• One camera module and one custom adapter board included

Supported Toradex Platforms

Compatibility

• Verdin Computer on Module Family

  • Verdin iMX95 *‍
  • Verdin iMX8M Plus‍
  • Verdin AM62P‍
  • Verdin iMX8M Mini‍
  • Verdin AM62

* Driver available

• Verdin Carrier Boards Supported

  • Dahlia Carrier Board with HDMI Adapter
  • Yavia Board
  • Mallow Carrier Board

Driver Availability and Bring Up

A driver is available for Verdin iMX95. Contact IQL to discuss driver support for your selected Toradex module, carrier board, and operating system.

What the Kit Includes

The kit contains one IQL-IMX462 camera module and one IQL custom adapter board. Select the Toradex computer on module and carrier board configuration as part of planning the evaluation setup.

Low Light Evaluation Workflow

Evaluate image quality at the working distances and lighting levels expected in your product. IQL can discuss alternative lens options and image processing adjustments to suit the scene you need to capture.

Applications and Product Development

Potential applications include robotics, industrial monitoring, embedded vision, edge AI development, and drone or UAV imaging. The kit helps teams explore camera performance on Toradex hardware before planning a product integration.

Integration Support

IQL can support camera hardware integration, image sensor driver development, ISP tuning, and image quality validation. The adapter kit provides an evaluation starting point, while the production implementation can be planned around the host platform, enclosure, and imaging requirements.
