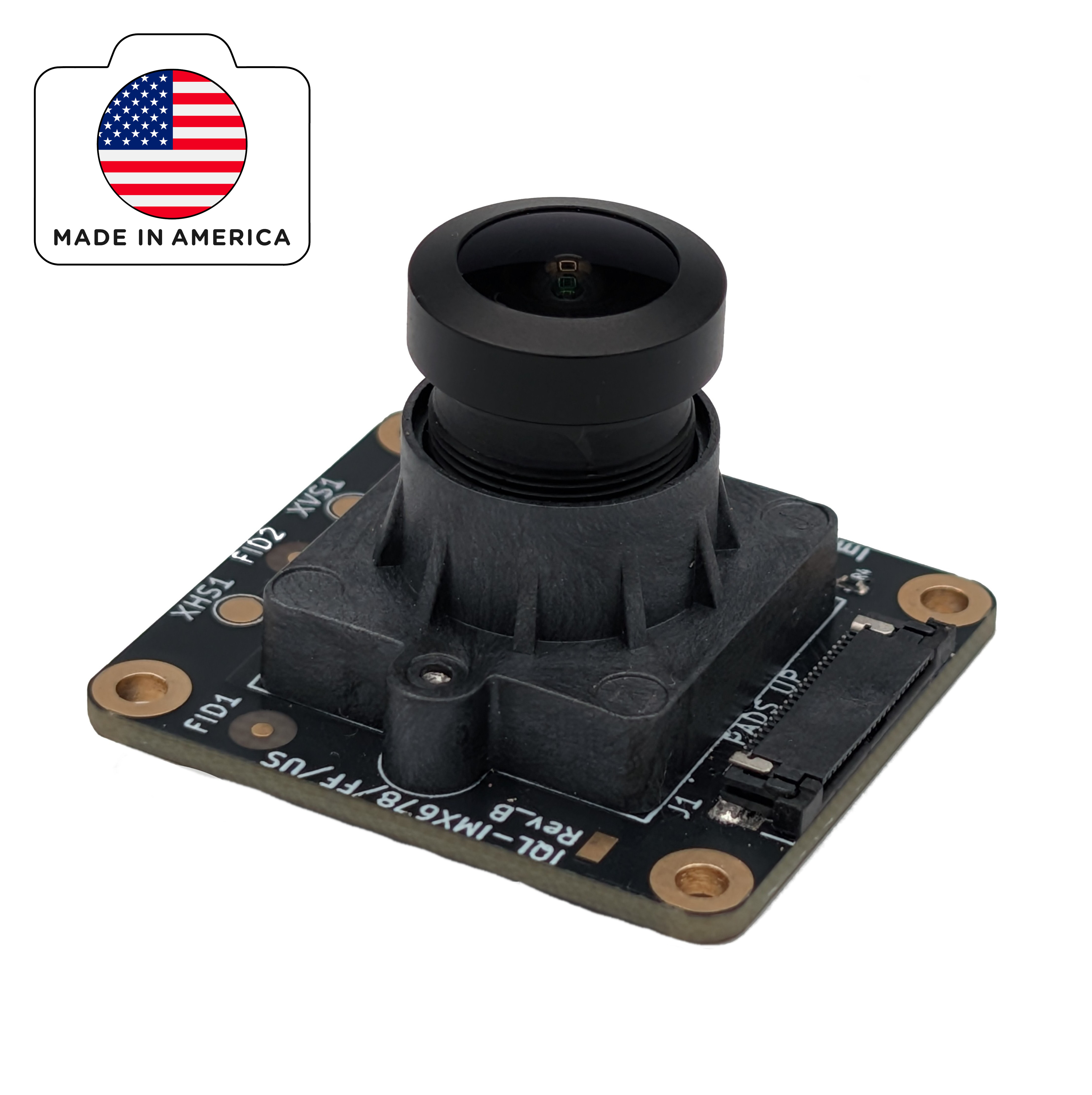

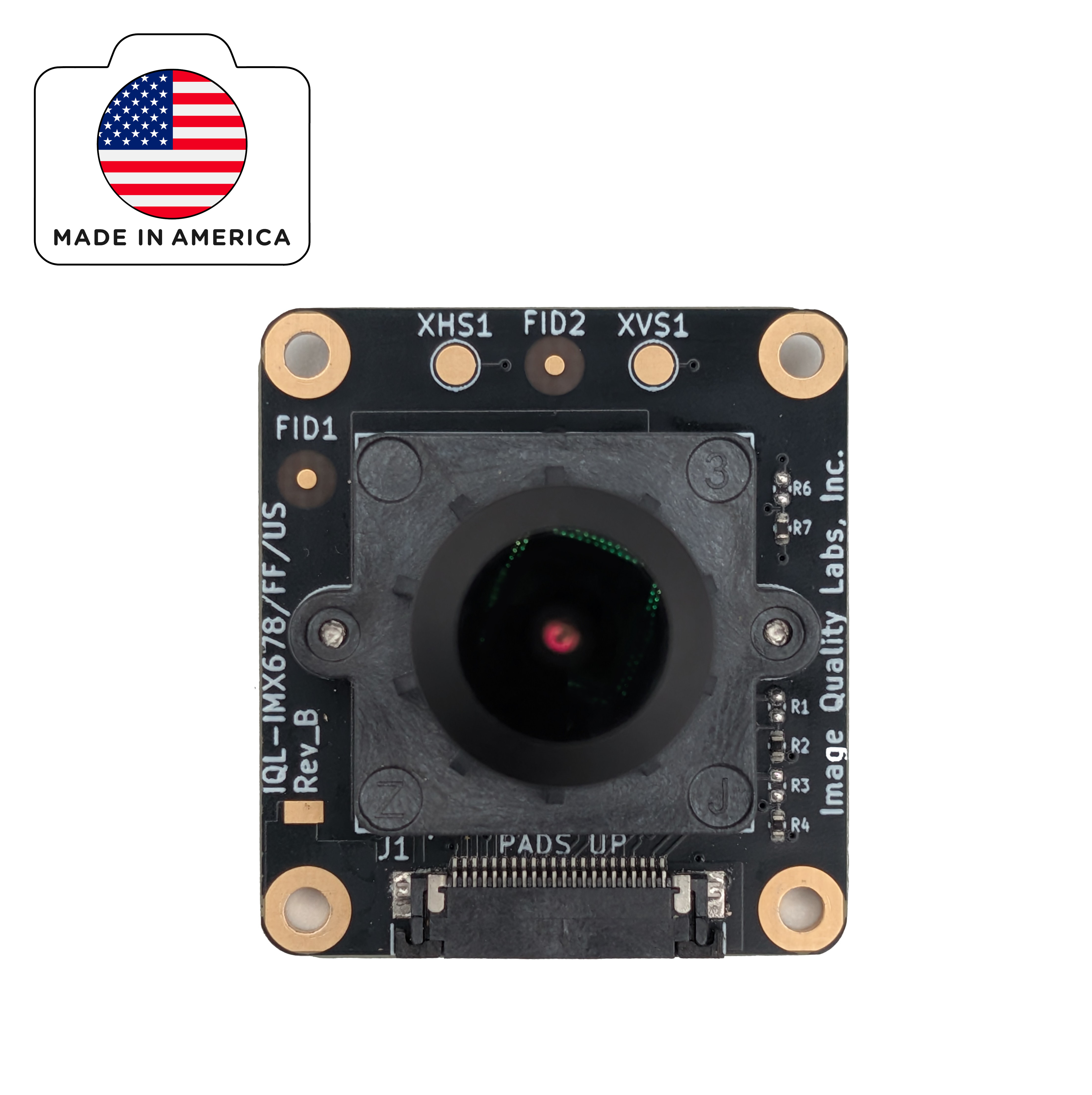

Sony STARVIS 2 IMX678 8MP FF Digital Camera Module (US Made)

Key Features

• Sony STARVIS 2 IMX678 image sensor
• 8MP resolution
• Fixed focus optical configuration
• Low light imaging capability
• PCB mounted camera module
• Manufactured in the United States
• Custom camera PCB development available
• IQL engineering services for camera integration, driver development, ISP tuning, and image quality optimization

Designed for Embedded Camera Integration

The IQL-IMX678/FF/US is intended for developers and product teams integrating a camera into a larger embedded imaging system. Its PCB based construction provides a starting point for evaluating the camera and planning the hardware around it.

Image Quality Labs offers engineering support for camera design and integration, embedded imaging hardware development, image sensor driver development, ISP tuning, and image quality testing. These services help teams address the hardware, software, and imaging requirements of their particular system.

Sony IMX678 Imaging Performance

The Sony IMX678 is part of the STARVIS 2 sensor family. The IQL module combines this sensor with an 8MP imaging platform and a fixed focus optical configuration for applications where detailed imagery and low light performance are important.

Camera performance in a finished product also depends on the lens, processing pipeline, and operating conditions. IQL can support optical evaluation, ISP tuning, and image quality validation for the intended application.

Typical Applications

• Robotics and embedded vision systems
• Industrial imaging and machine vision
• Edge AI camera development
• Security and monitoring systems
• Low light imaging systems
• Custom embedded camera products
• Drone and UAV imaging

Mechanical and Product Integration

The standard IQL-IMX678/FF/US camera is mounted on a PCB and uses a fixed focus optical configuration. For applications that require a different form factor, connector arrangement, mounting configuration, or electrical architecture, IQL can work with customers on a customized camera implementation.

Key Specifications

• Image sensor: Sony IMX678
• Sensor family: STARVIS 2
• Resolution: 8 MP
• Focus: Fixed focus
• Module construction: PCB
• Manufacturing: United States
• SKU: IQL-IMX678/FF/US

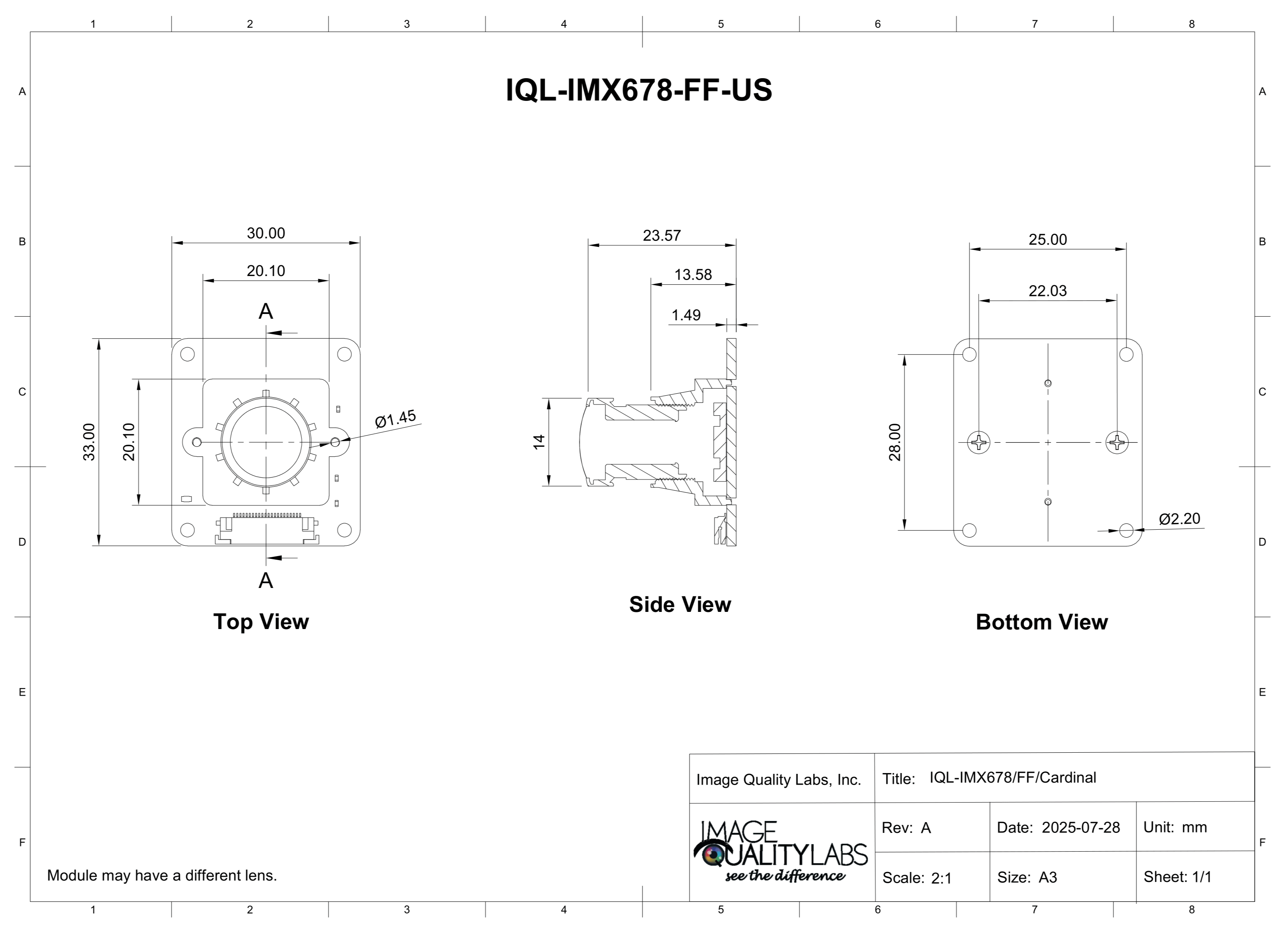

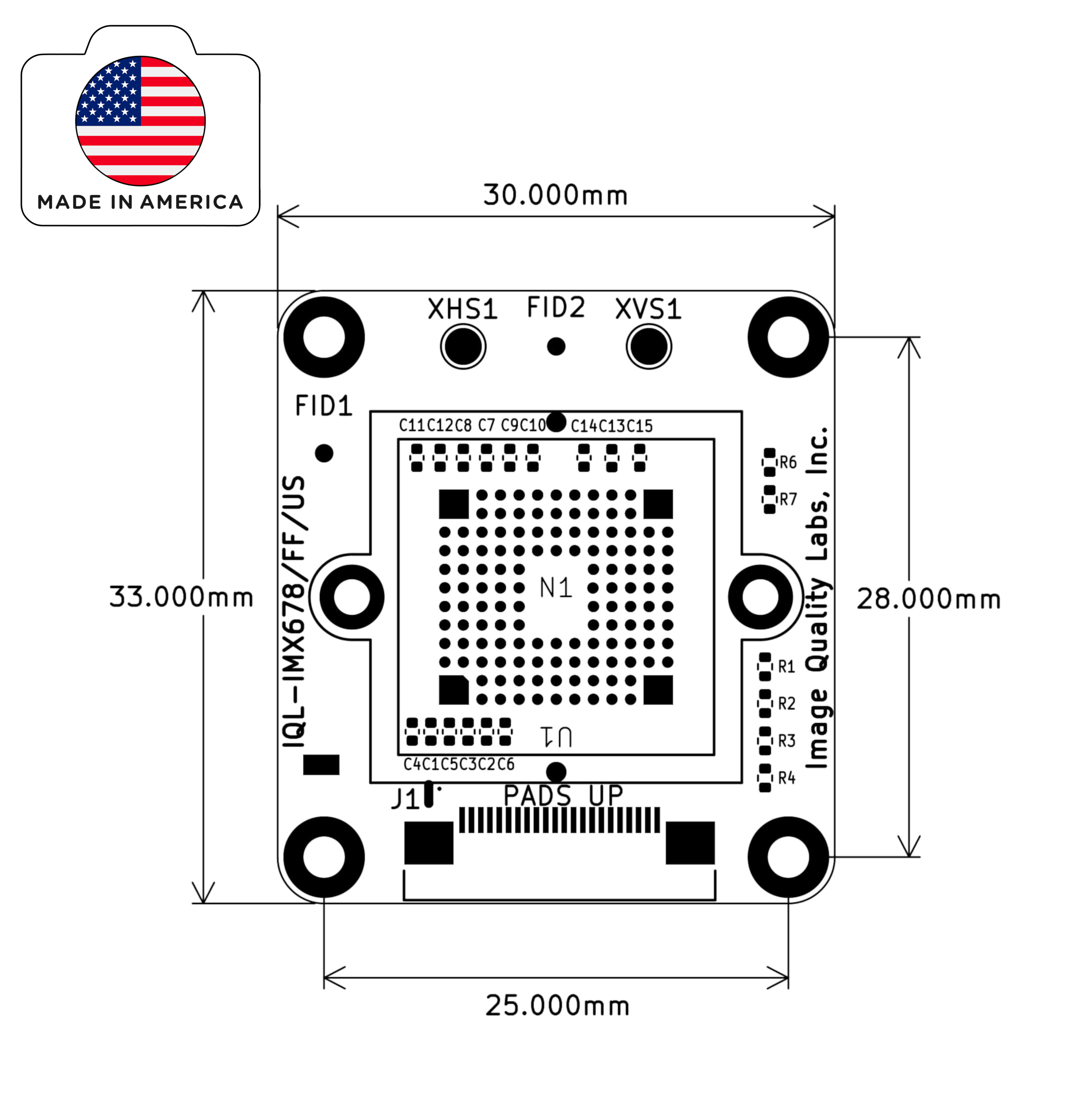

IQL-IMX678/FF/US Mechanical Drawing

Manufactured in the United States

The IQL-IMX678/FF/US is manufactured in the United States, providing a domestic camera module option for programs where U.S. based sourcing and manufacturing oversight are important.

Need a Custom IMX678 Camera Solution?

Start with the standard module or discuss a camera implementation tailored to your product. Image Quality Labs can support custom camera module design, electrical and mechanical integration, lens evaluation, image sensor driver development, ISP tuning, and image quality validation.
