Sony STARVIS 2 IMX662 2MP FF Digital Camera Module

No items found.

SKU: IQL-IMX662/FF

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

Brief Overview

Image Quality Labs offers flexible camera module solutions ranging from 2MP fixed focus to 48MP auto focus. We have partnered with a global camera module supplier to be their technical solutions integrator for customers looking for turnkey camera module integration into their products.

The Sony STARVIS 2 IMX662 2MP fixed focus camera module provides an FPC based platform for low light imaging, visual monitoring, and embedded camera development.

Product features

Our 2MP Digital Camera Module uses a fixed focus M12 lens and is mounted on an FPC. This allows for flexible integration into your product and we will consider a custom FPC to meet your requirements. It utilizes the Sony STARVIS 2 IMX662 image sensor for exceptional low light performance.

Applications and Integration

Potential applications include robotics, industrial inspection, visual monitoring, and drone or UAV imaging. Evaluate the module in the lighting and at the working distances expected in your system.

IQL can discuss lens options, operating distances, camera integration, and custom FPC requirements to help match the camera assembly to your application.

The drawing can be seen below:

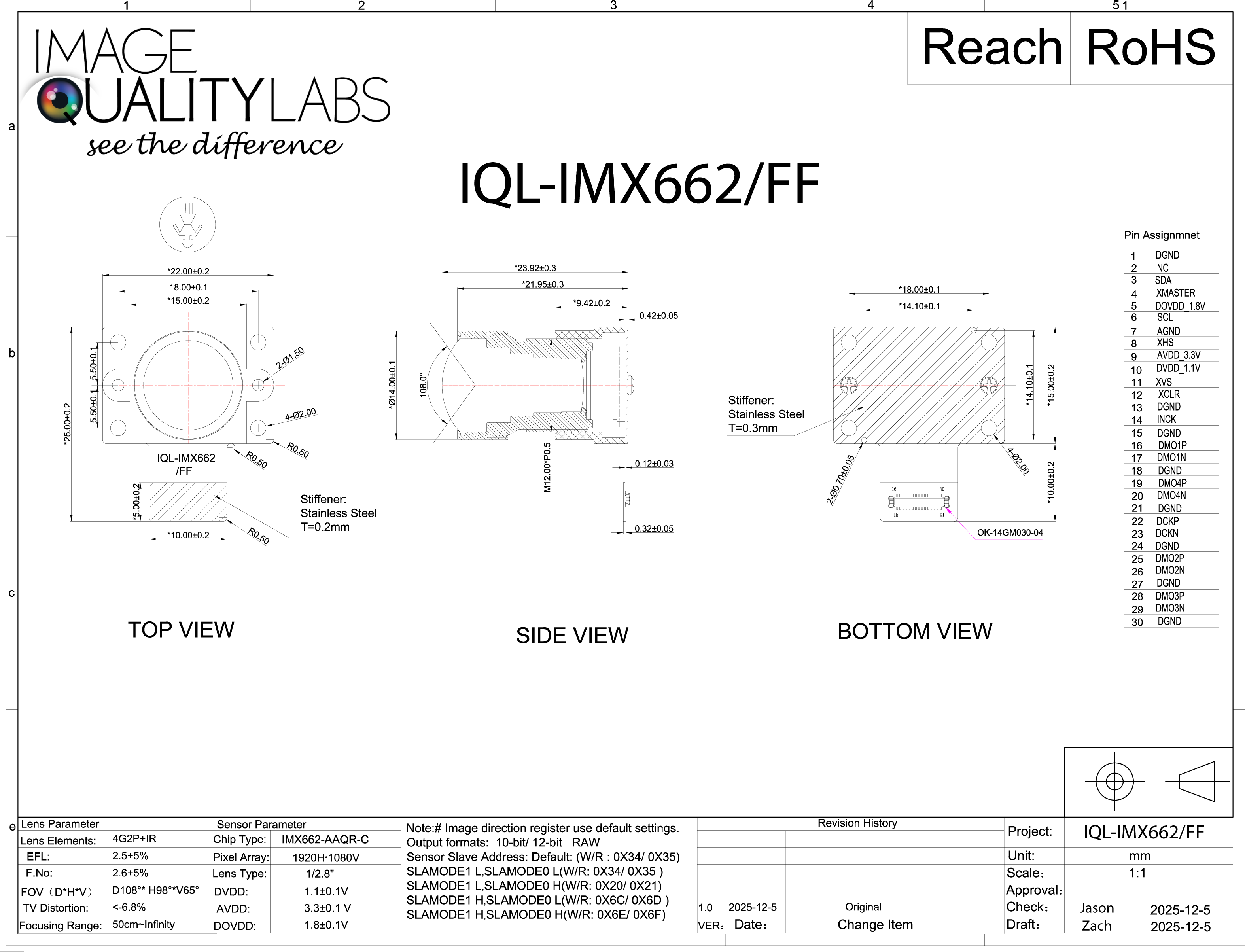

Sony STARVIS 2 IMX662 2MP FF Digital Camera Module mechanical drawing and pinout — Camera Drawing

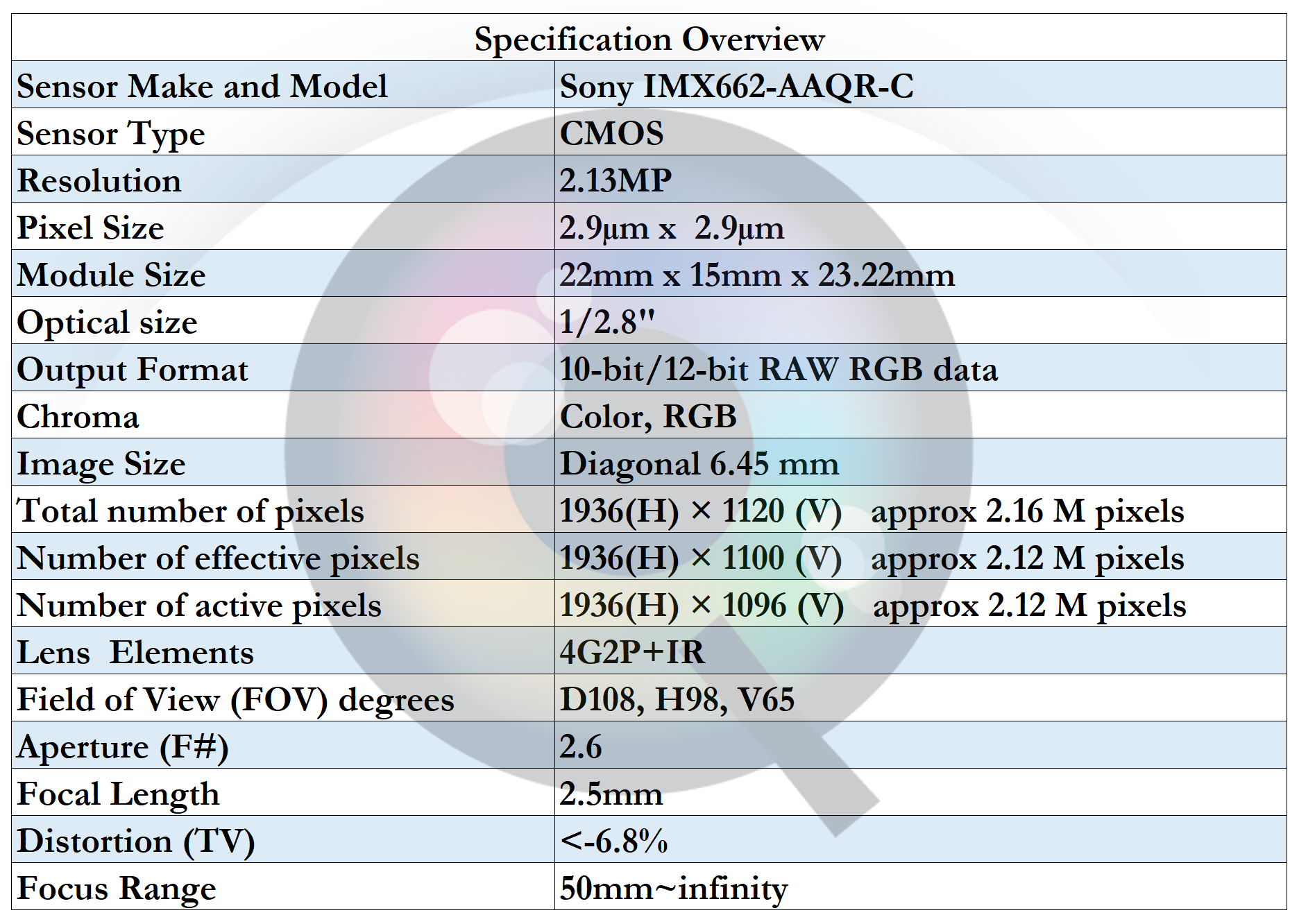

Sony STARVIS 2 IMX662 2MP FF Digital Camera Module key specifications — Key Parameters

‍
