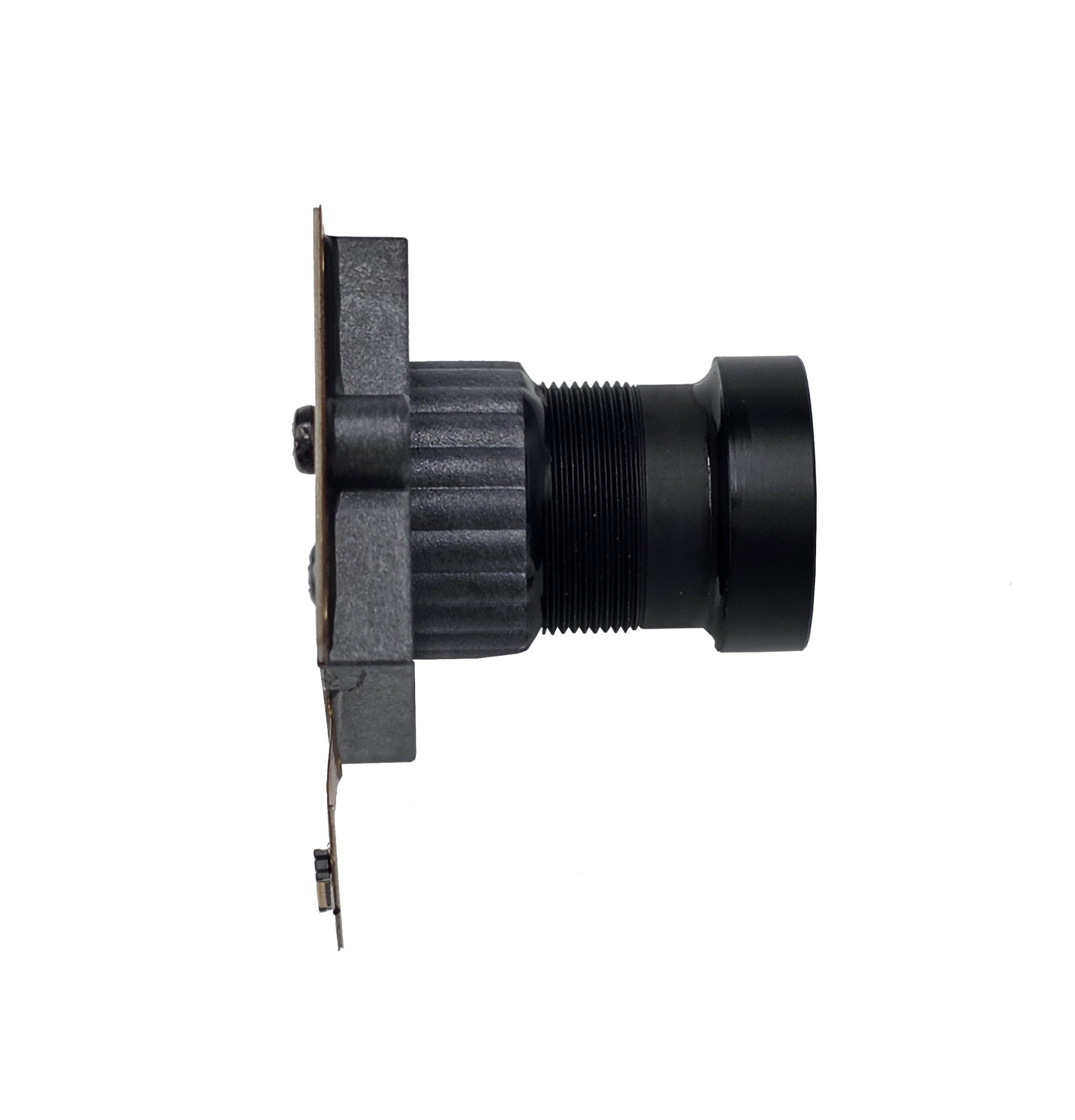

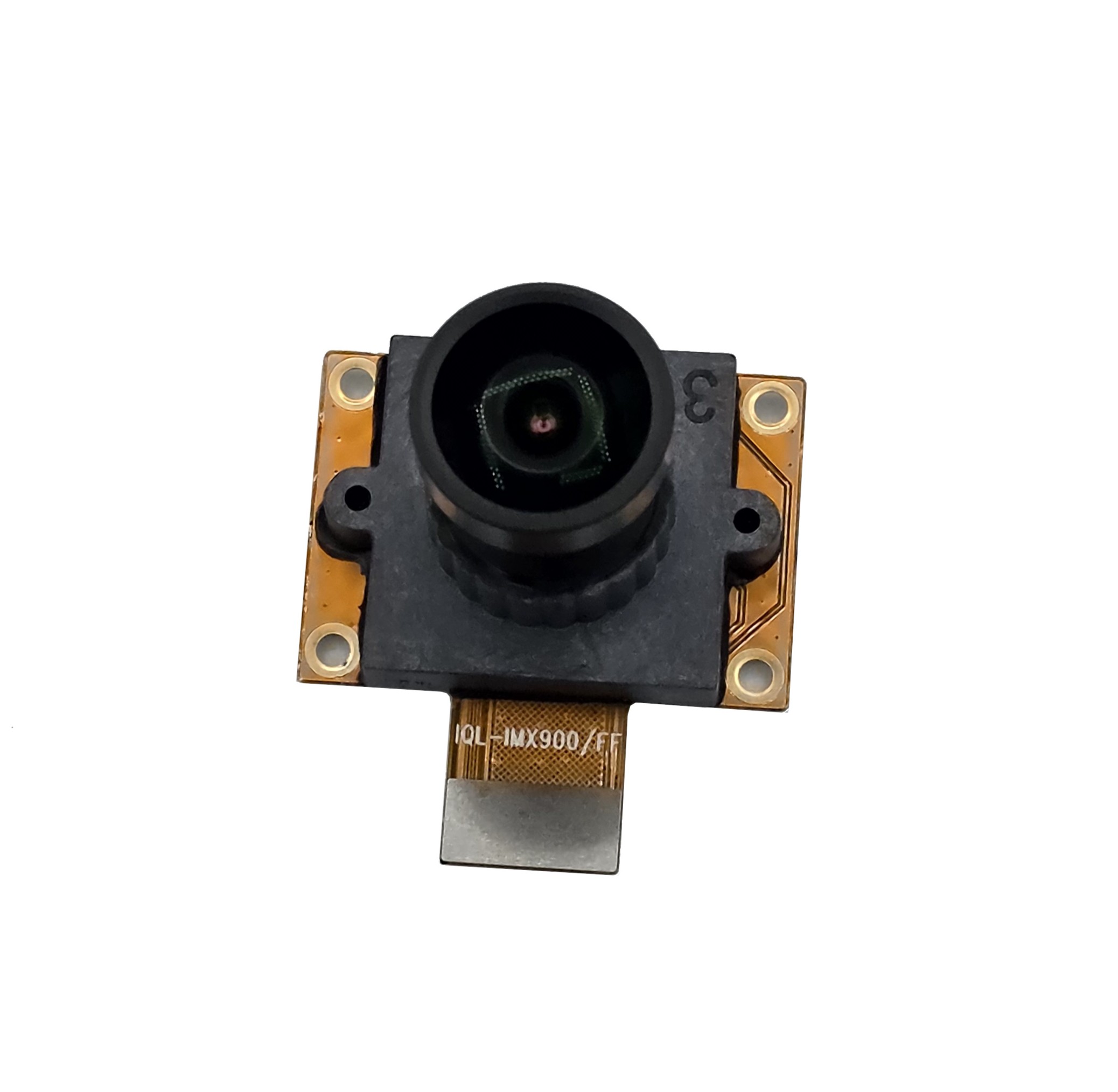

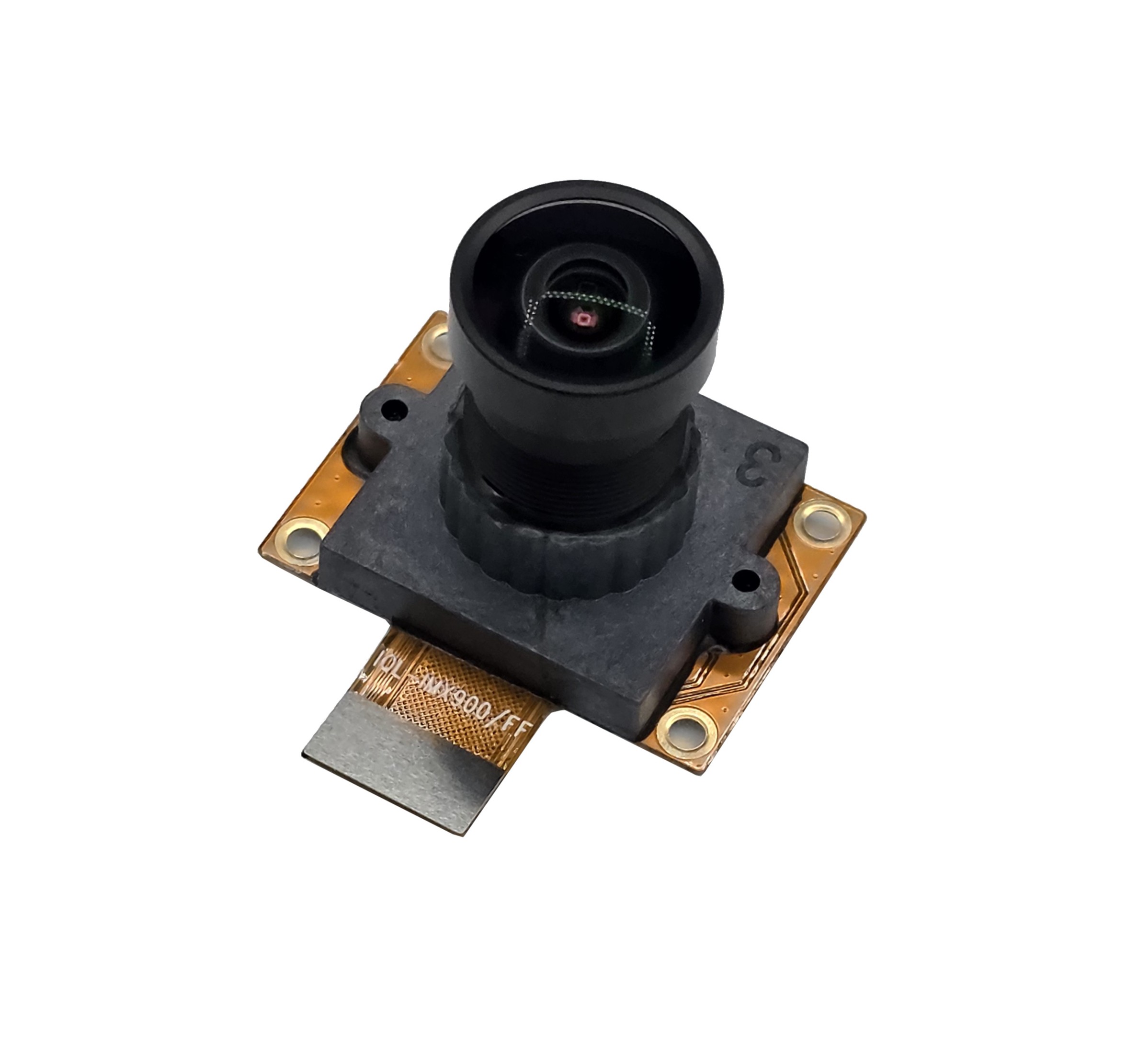

Sony IMX900 3.2MP FF Global Shutter Camera Module

Key Features

• Sony IMX900-AQR global shutter image sensor
• 3.2MP resolution
• Fixed focus M12 lens
• Flexible printed circuit (FPC) construction
• Custom FPC requirements considered by IQL

Choosing This Module

The IMX900 module brings a global shutter sensor and an M12 optical configuration to an FPC based camera design. It is intended for teams developing an embedded imaging system and evaluating the camera alongside their processor, optics, and mechanical requirements.

Industrial and Machine Vision Applications

Potential applications include barcode scanning, robotic vision, manufacturing inspection, and drone or UAV imaging. Evaluate the camera using representative objects, lighting, working distances, and motion conditions so the selected configuration matches the task.

Camera Integration

Begin with the module drawing and key parameter reference below to assess the standard implementation. Plan the camera mounting, lens clearance, FPC routing, and connection to the host hardware together. If the standard FPC does not meet the enclosure or connector requirements, discuss a custom configuration with IQL.

Optics and System Evaluation

The supplied configuration uses a fixed focus M12 lens. IQL can also discuss alternative lens options for your application. Working distance, required scene coverage, illumination, and the size of the features being inspected should guide optical evaluation. Confirm the required capture modes, driver implementation, and any timing or synchronization requirements for the intended host before finalizing the design.

Engineering Support

IQL offers camera integration, embedded imaging hardware development, image sensor driver development, ISP tuning, and image quality testing services. These can support the transition from module evaluation to a camera integrated into the final product.

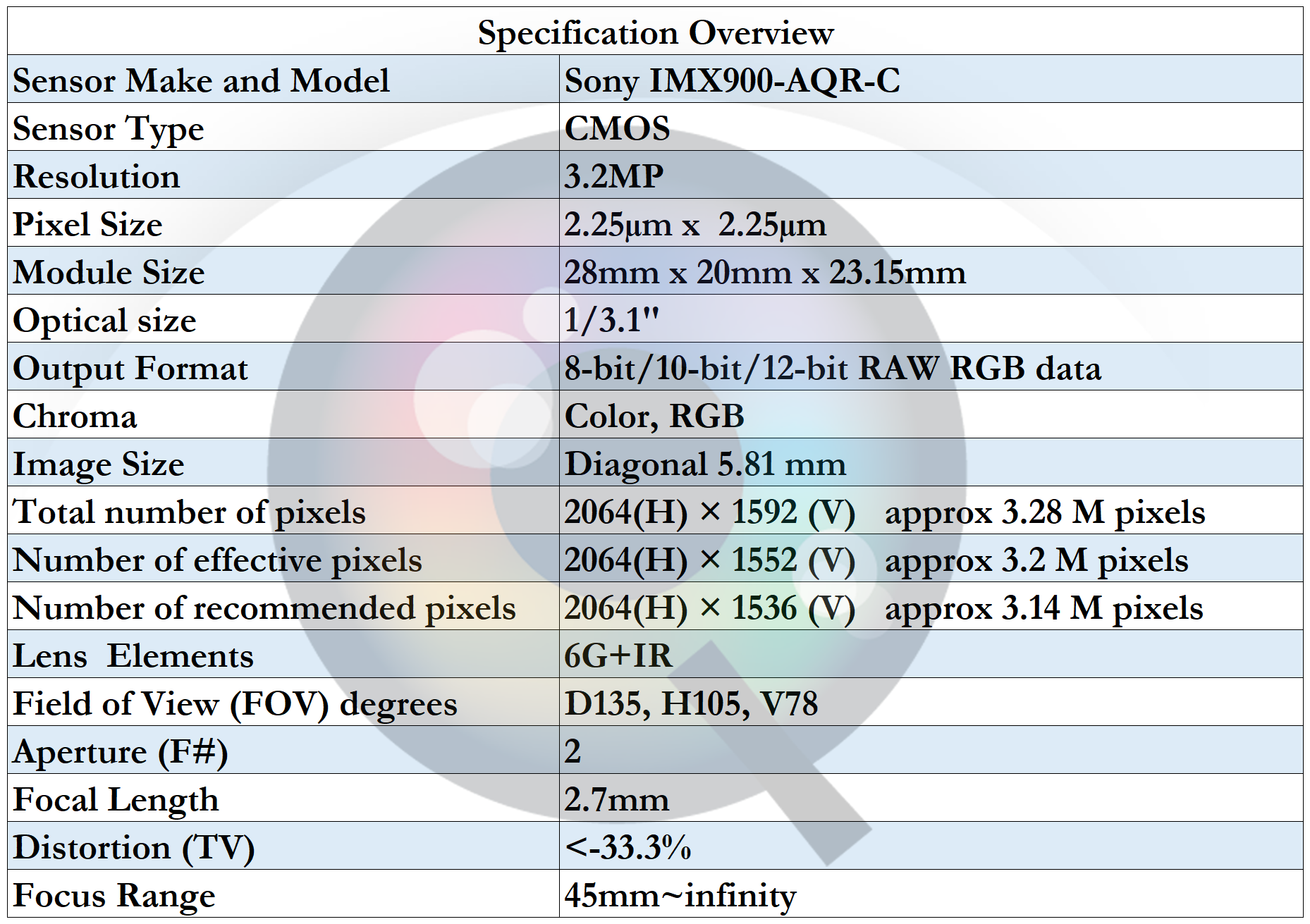

Mechanical Drawing and Key Parameters
