Key Features

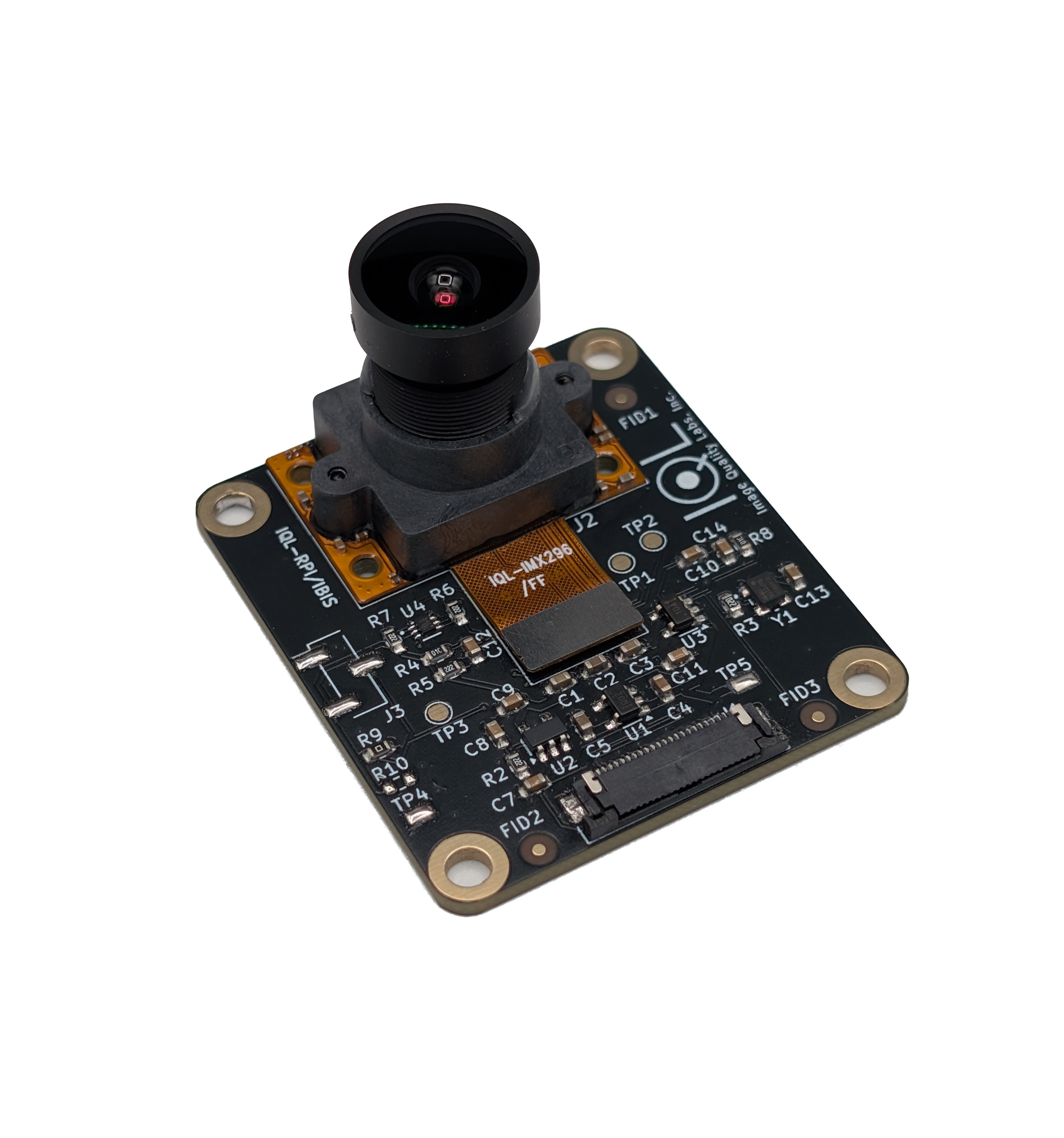

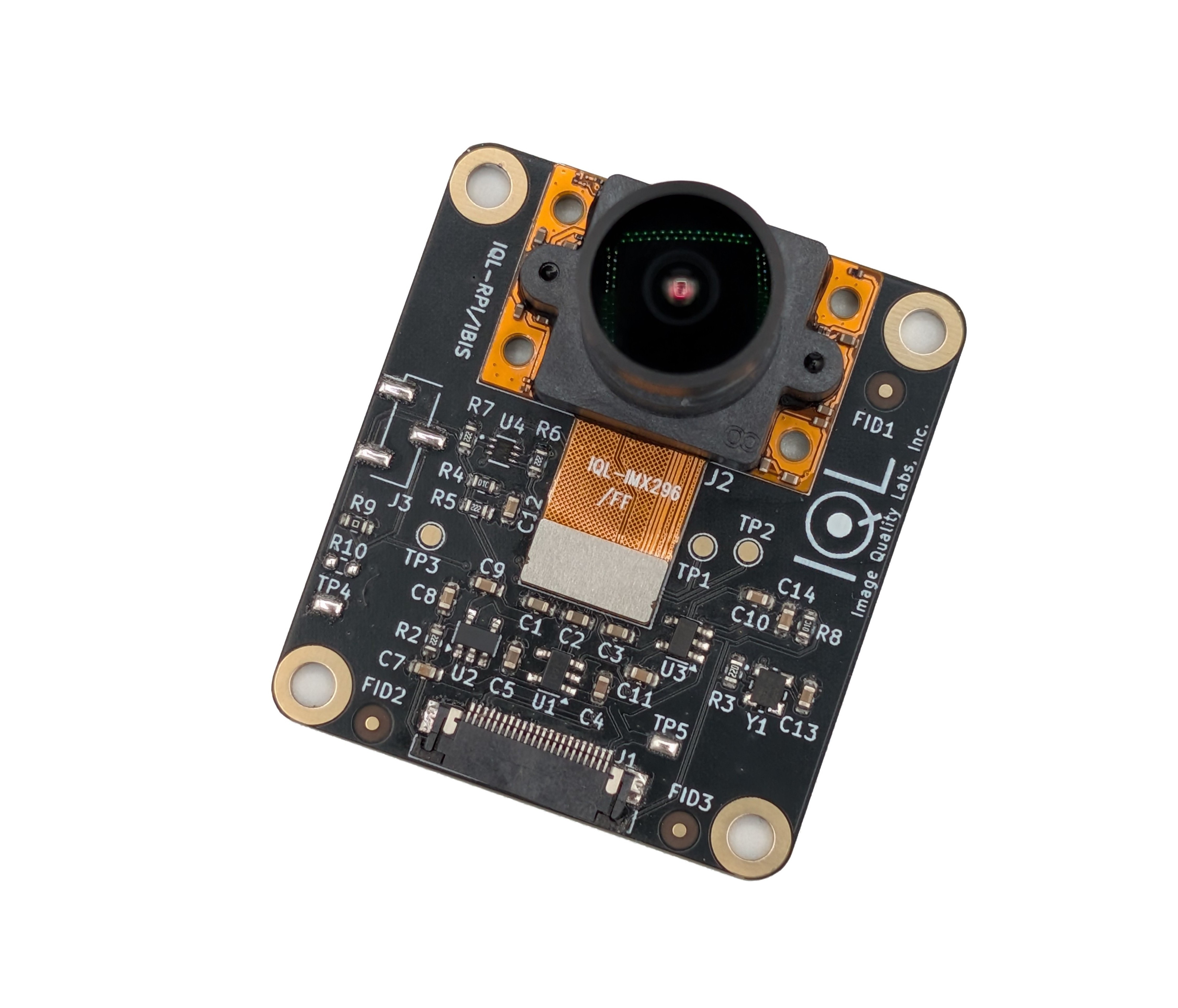

- Sony IMX296 1.55MP global shutter camera module
- Fixed focus lens with 128° diagonal field of view
- MIPI interface

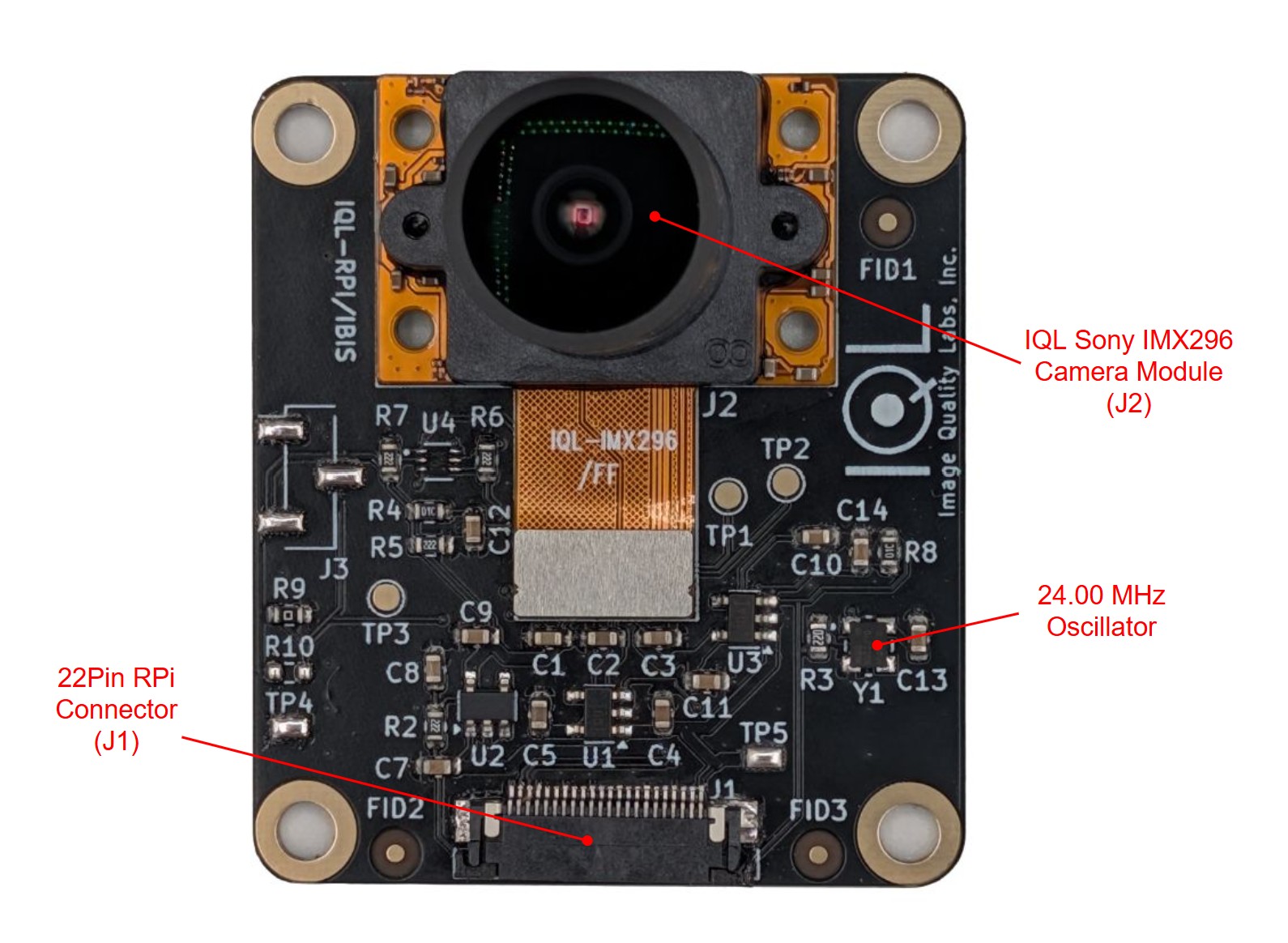

- Camera module and IQL adapter board included
Raspberry Pi Evaluation
The listed platforms are Raspberry Pi 5, Raspberry Pi 4, and Raspberry Pi Zero 2. Contact IQL about driver implementation for your board and software. For other systems with a Raspberry Pi camera interface, discuss connection and software requirements with IQL.
Applications and Integration
Potential applications include robotics, industrial inspection, research, environmental monitoring, and drone or UAV imaging. Evaluate image detail and motion capture using the lighting and working distances expected in your system.
IQL can discuss alternative lens options, camera mounting, and integration requirements to help match the camera assembly to your application.
Image Quality and Software
Assess focus, exposure, and image quality with your chosen host and processing software. IQL can support camera driver development, ISP tuning, and image quality evaluation as part of product development.
What the Kit Includes

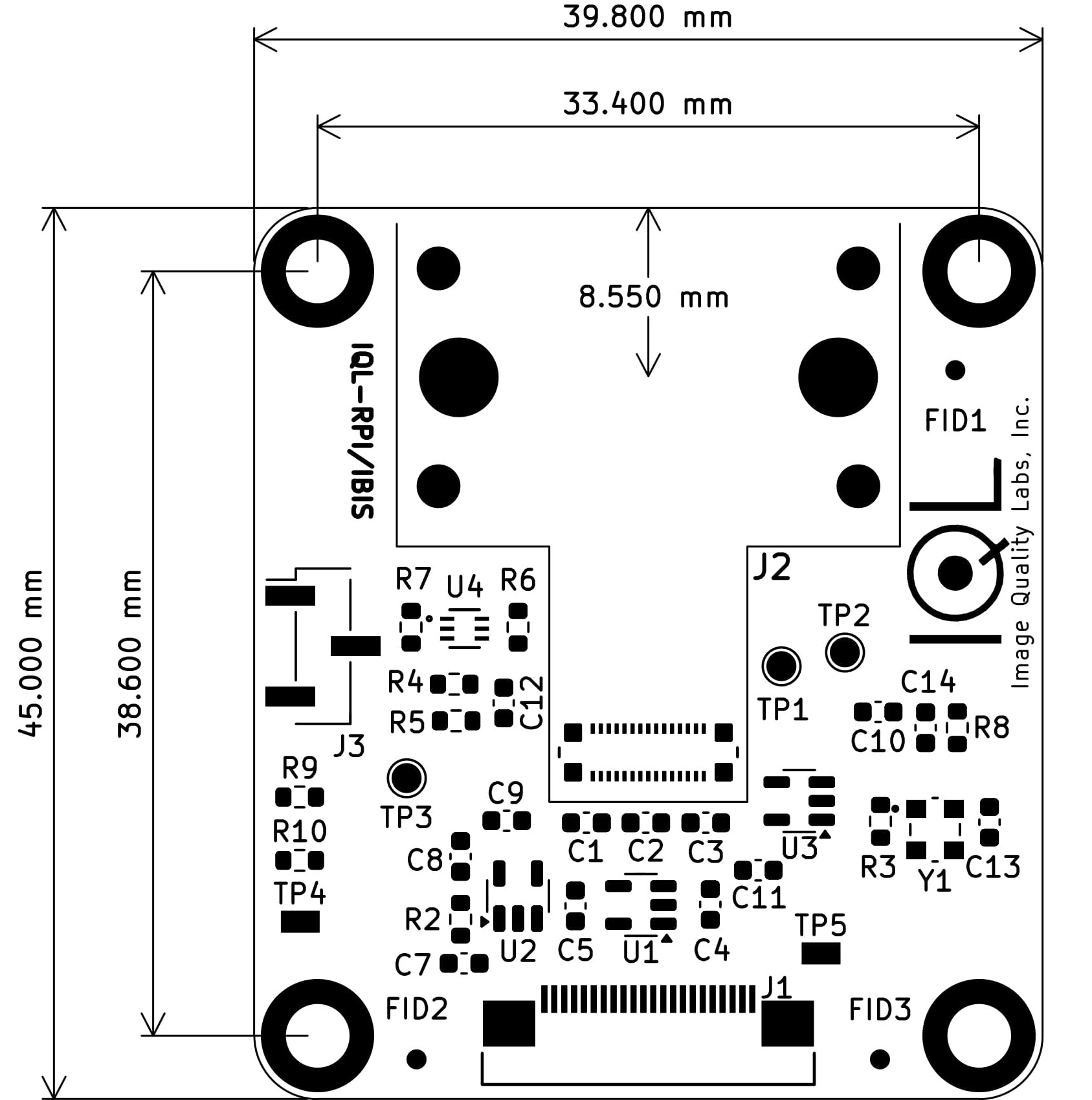

One camera module and one adapter board are included. See the camera module link above and the existing image gallery for module details and mechanical references.
Cameras
Have questions about our cameras? Contact us for product details, pricing, or help choosing and integrating the right camera for your application.
