Key Features

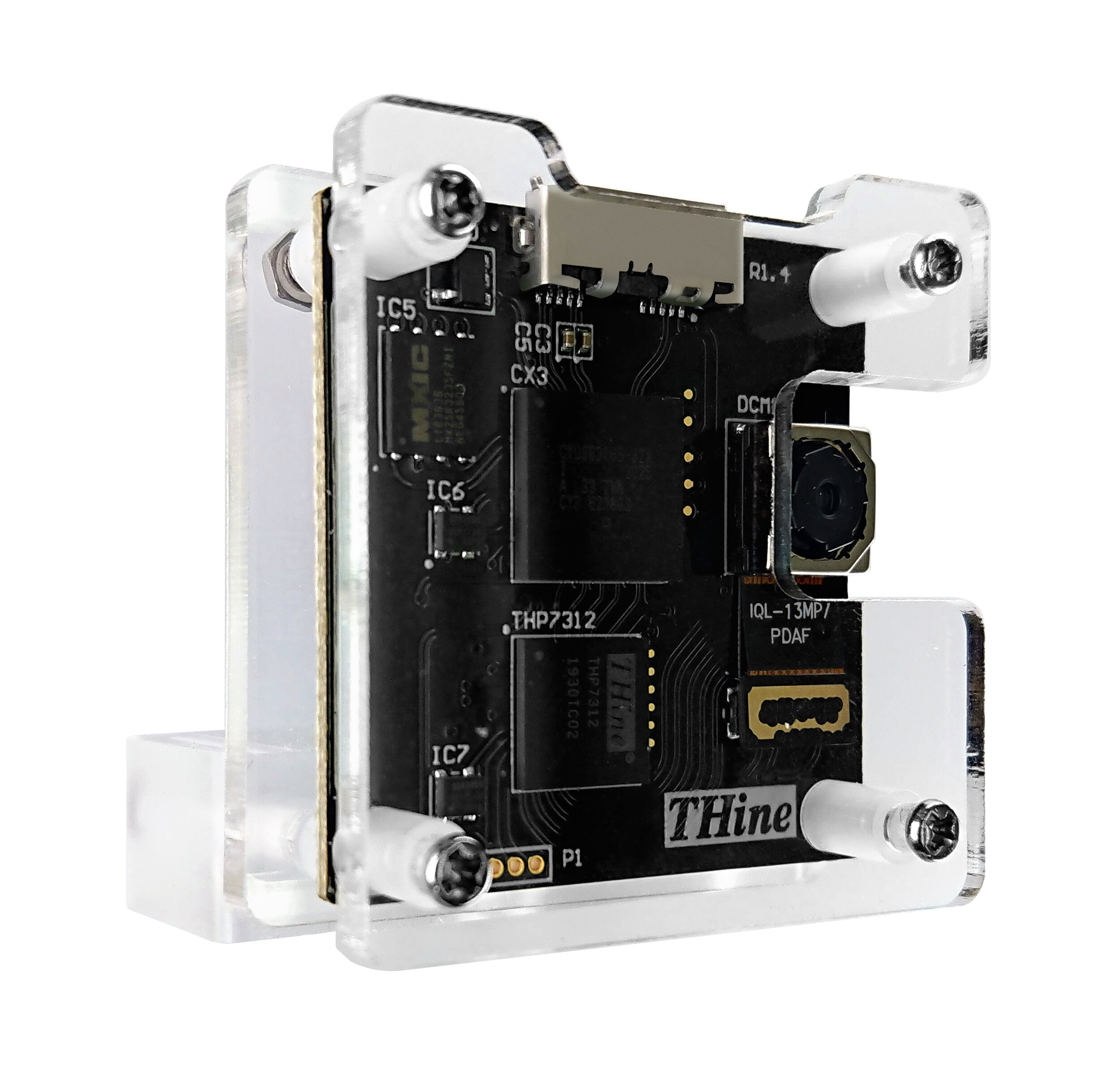

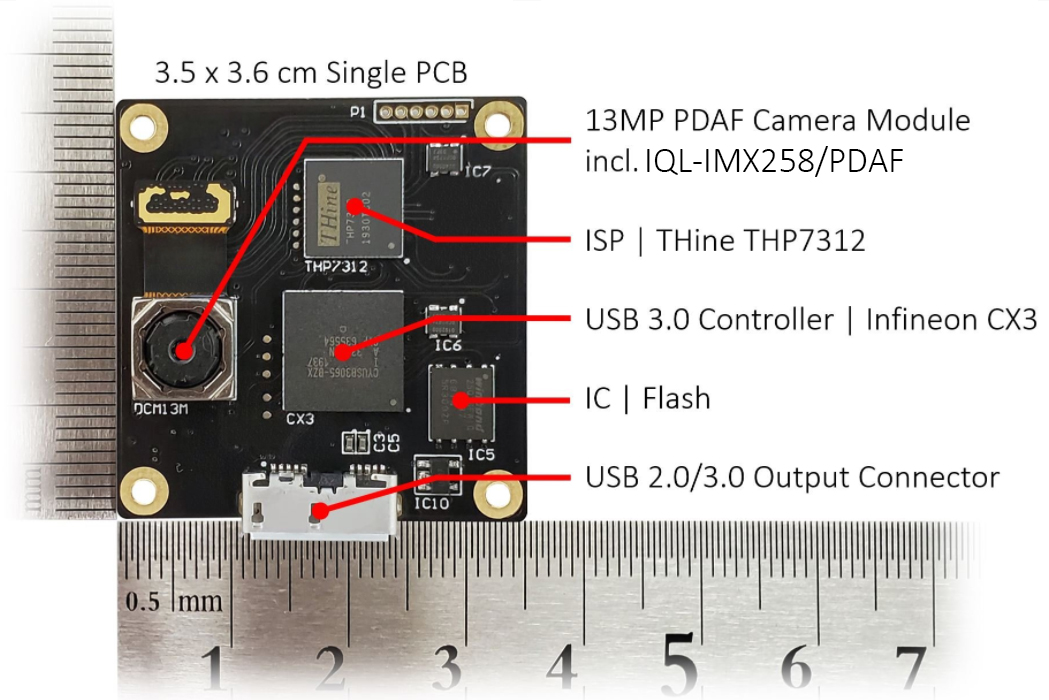

• Sony IMX258 13MP PDAF camera module
• THine THP7312 standalone ISP
• USB Video Class (UVC) interface and extension functions
• YUV422 or JPEG output selection
• 1.4 inch × 1.4 inch single printed circuit board
• Camera customization available

USB Camera Integration

The USB interface combines camera capture and onboard image processing for evaluation on your host system. IQL can help assess host software support for the UVC controls and extension functions your application needs.

Autofocus and Image Evaluation

Use representative subject distances, lighting, and scene detail when assessing autofocus behavior and image quality. The camera exposes focus, exposure, white balance, and other image controls listed below, allowing evaluation to address both optical behavior and the processing settings used by the application.

Output Modes and Controls

Output size, frame rate, and YUV422 or JPEG output are configurable. See the image resolution reference below for supported combinations and discuss host software requirements with IQL.

Applications and Customization

Potential applications include document imaging, visual inspection, research, and embedded products using a USB camera connection. IQL can discuss lens options, camera customization, host integration, and image quality optimization for your project.

Camera Overview and Resolution Reference

General UVC Functions

• Output Size and Frame Rate selection
• YUV422 or JPEG selection

Camera Control UVC Functions

• Focus, Auto
• Auto Exposure Mode
• Exposure Time (Absolute)
• Auto Exposure Priority
• Focus (Absolute)
• Roll

Image Processing UVC Functions

• Brightness
• Contrast
• Hue
• Saturation
• Sharpness
• Gamma
• White Balance Auto
• White Balance Temperature
• Backlight compensation
• Manual Flicker Cancel

UVC Extension functions

• Exposure Compensation
• Flicker Cancel Priority
• Maximum Frame Rate
• Auto Focus Mode
• Noise Reduction Mode
• Document Mode
• Color Mode
• JPEG Q Factor

To learn more how about this USB camera and how to use it, please visit our partner's website for more details.
