Omnivision OV48B 48MP Auto-Focus Digital Camera Module

Key Features

• OmniVision OV48B image sensor
• 48MP resolution
• Autofocus optical configuration
• Flexible printed circuit (FPC) construction
• Custom FPC requirements considered by IQL

Evaluating High Resolution Imaging

The 48MP sensor provides a starting point for applications that need to capture fine image detail. Evaluate the module with the subject sizes, working distances, and lighting expected in your product.

Autofocus in the Application

Evaluate autofocus across the distances and lighting conditions your camera will encounter. IQL can discuss lens options and focus control requirements for the intended host and application.

Hardware and Software Integration

Use the existing drawing, pinout, and key parameter reference below when planning the camera connection and mechanical placement. Review FPC routing, enclosure clearances, power, host compatibility, and the image processing path as part of system integration. IQL can consider a custom FPC when the standard design does not fit the application.

Potential Applications

Potential applications include detailed still image capture, document imaging, visual inspection, custom embedded cameras, and drone or UAV imaging. The lens, lighting, and processing should be selected around the detail your system needs to capture.

Development Support

IQL offers camera integration, embedded imaging hardware development, image sensor driver development, ISP tuning, and image quality validation. For project planning, provide the target processor and software environment together with required output modes and enclosure constraints.

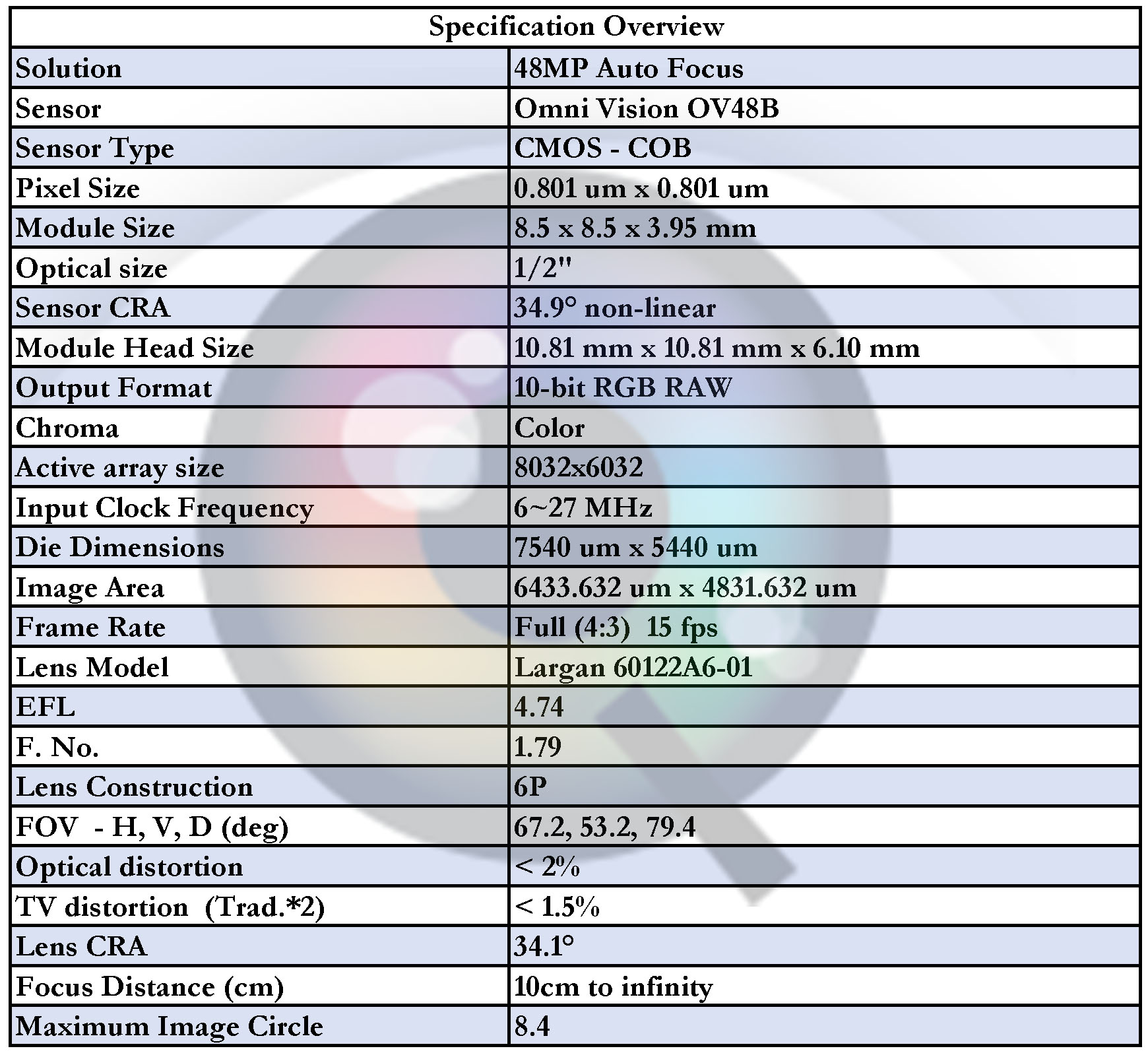

Mechanical Drawing, Pinout, and Key Parameters
